Product Type
Product Type
- Outdoor AP
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
8 spatial streams
● 2.4 GHz: 4 x 4, MU-MIMO
● 5 GHz: 4 x 4, MU-MIMO
Maximum wireless data rate
- 5950 Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 4803 Mbps
2.4 GHz wireless data rate
- 1147 Mbps
Antenna
Antenna
- 2.4 GHz: 4 built-in omnidirectional antennas
5 GHz: 4 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
- 300 mm x 300 mm x 75.5 mm (11.81 in. x 11.81 in. x 2.97 in.) (excluding the mounting bracket)
Color
- White
Weight
- ≤ 3.5 kg (7.72 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000/2500BASE-T ports
- 1
Number of 1GE SFP ports
- 1
Power Supply and Consumption
Power supply
- ● DC power adapter
● PoE+/PoE++
Note: If both the DC power adapter and PoE+/PoE++ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes, one DC power connector (48 V, 1 A)
Dimensions of the DC connector
- Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 40 W
Environment and Reliability
Operating temperature
- –40°C to +65°C (–40°F to +149°F)

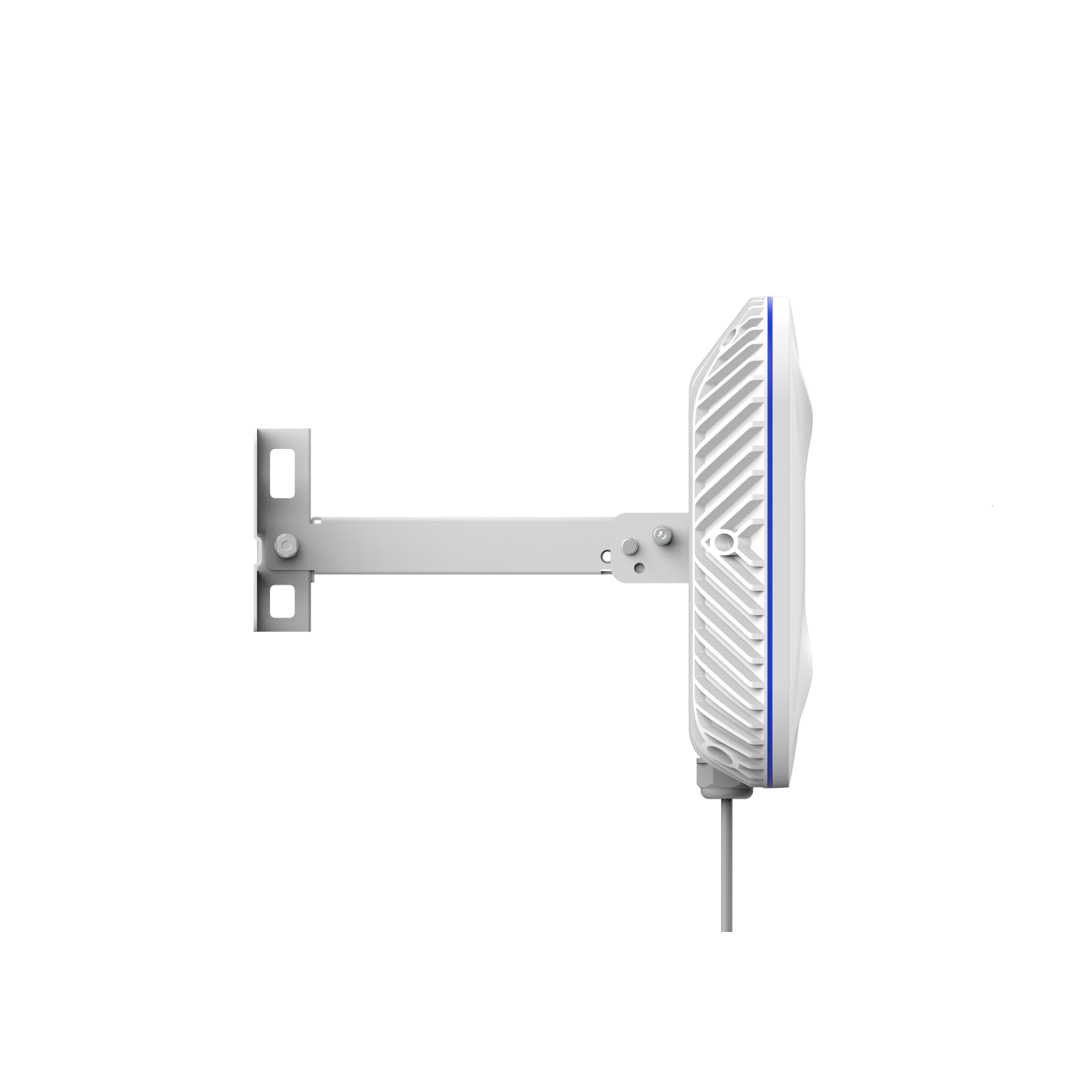

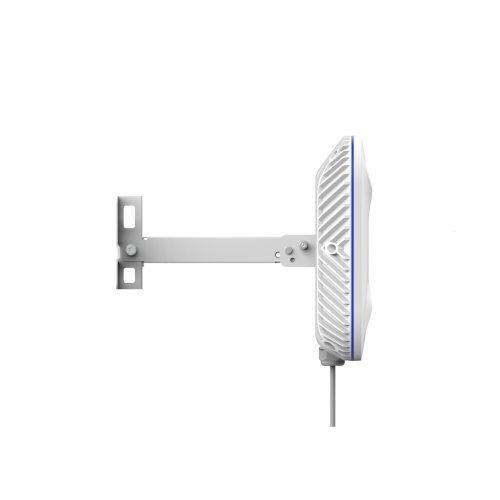

Mounting options
- Wall/Pole
IP rating
- IP68
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64 (2.4 GHz)
512 (5 GHz)
512 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
IP Service
IPv6
- Yes
